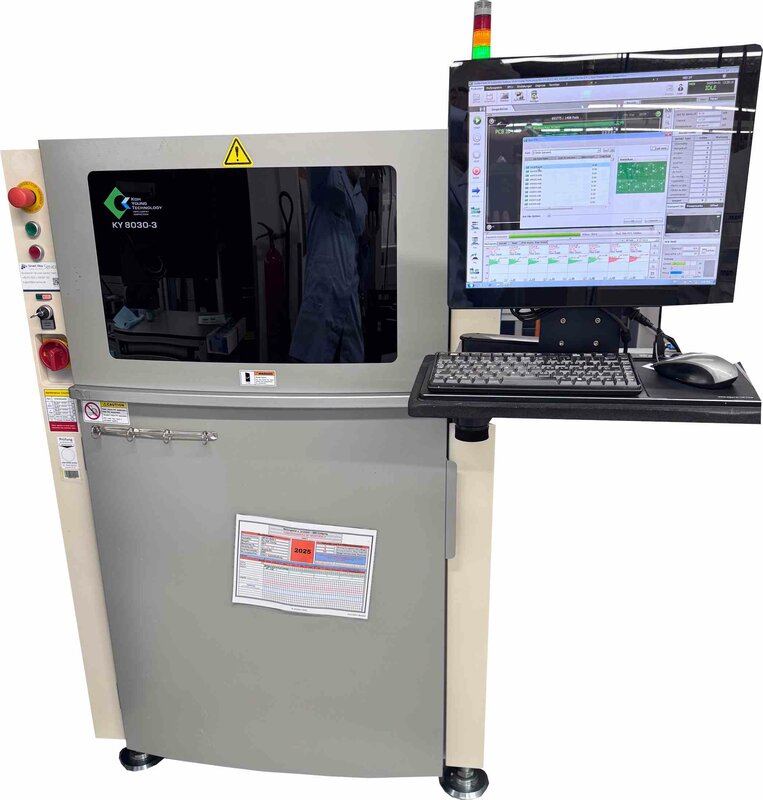

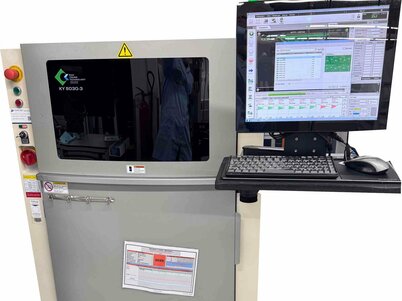

Koh-Young 3D Inline SPI 8030-3 L

Inspection Technology

Manufacturer
Koh-Young

Type
8030-3 L

Year
2012

Status

                        Very good

Gerber concersion software

Software Package easy-to-use with Touch Screen Service

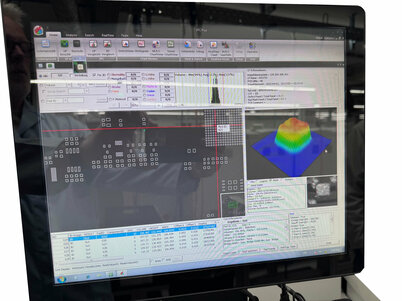

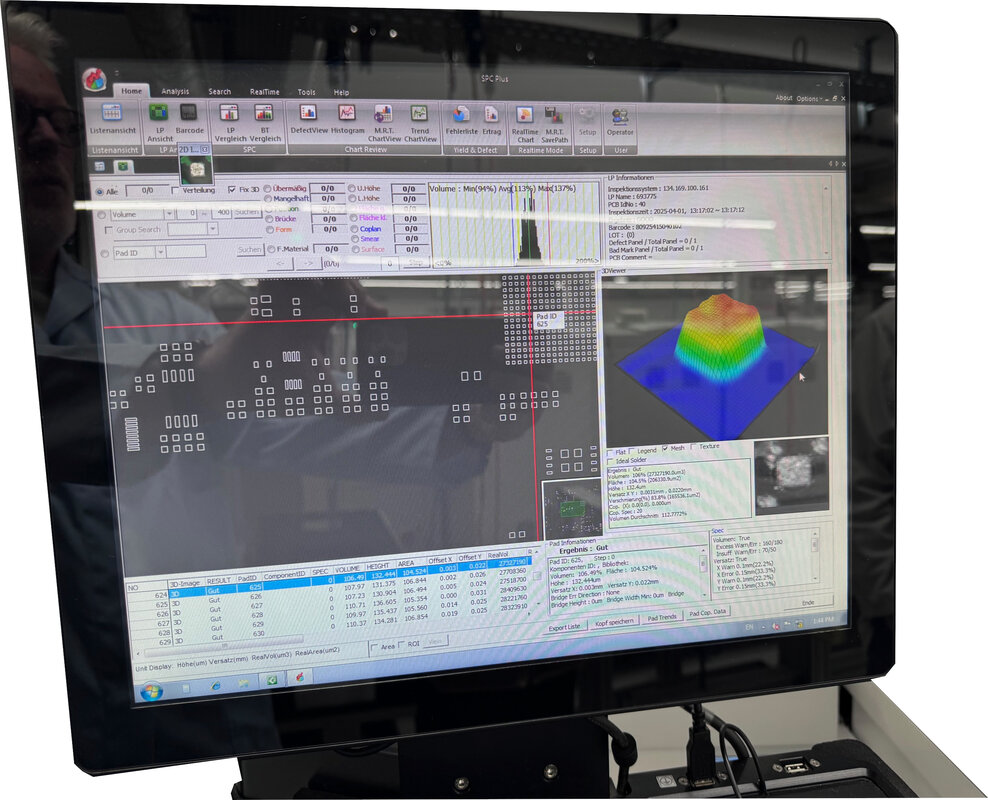

SPC Plus Software

measurement:

insufficient, too much or no paste

formation of bridges

paste deformation

Volume, hight

XY positions

shadow free measurement with 2 way projection

4 MPix high speed camera, 20µm XY resolution, 0,37µm Z resolution

ca. 60cm²/sec inspection speed

Z-axis tracking

SPC-Plus-Software-package

PCB size max. 510x510mm

automatical width adjustment

SMEMA interface

transport hight 950 +/- 50mm

QR Code recognition

2D recognition of bridges and smudging
